Files validated
- Interactive 3D preview
Cable Management Clip Set: Desk-Edge Clips (10–30 mm), Adhesive Clips & Cable Combs
STL · 3MF
FreeNo reviews yet
Loading 3D preview…
Description
Six small, genuinely useful prints for around the home, each in the sizes you actually need: a draining sponge caddy that really drains, a wall-mounted remote holder (screw or no-drill), stackable desk organisers in three heights, a toothpaste tube roller with a smooth-turning key, a five-channel cable comb for three cable sizes and a book page thumb holder in three ring sizes. Rounded edges and chamfers throughout, no supports on any part.
What's included (19 parts, STL + 3MF, plus 5 ready plates)
- Draining sponge caddy, small and large: floor slopes 4° to the front, raised ribs, drain slots at floor level
- Wall-mounted remote holder, 60 or 100 mm wide: countersunk screw holes, or a no-drill version with recesses for adhesive strips
- Stackable desk organiser, 120 x 90 mm in 30, 55 and 85 mm heights: any height stacks on any other, label recess on the front
- Toothpaste tube roller for 60 and 80 mm tubes: housing plus key, 0.3 mm bearing clearance, snap-through retaining bead
- Five-channel cable comb for 4, 6 or 8 mm cables: snap-in channels, chamfered entries, screw or tape mounting
- Book page thumb holder, S, M and L (20, 23, 26 mm thumb rings), 68.0 x 27.0 x 4.5 to 84.7 x 33.0 x 4.5 mm
Print settings
- PETG for the sponge caddy, PLA or PETG for the rest; 0.4 mm nozzle, 0.2 mm layers, 3 walls, 15 to 20 % infill, no supports
- 5 mm brim for the tube roller key and the remote holder
- Print as supplied: every file is already in its print orientation
- Every part fits a 180 x 180 mm bed; the plate 3MFs are laid out for 256 x 256 mm
You may also need
- 2 countersunk wood screws 3.5 to 4 mm (remote holder, screw version) or adhesive mounting strips (no-drill version)
Includes the editable .blend and the Blender Python scripts that generate every part, and an audit file per part.
Blender check (Blender 5.2.1, automated)
| File | Size (mm) | Triangles | Non-manifold | Open edges | Normals | Shells | Overhang >45° |
|---|---|---|---|---|---|---|---|
sponge_caddy_small | 104.8 x 74.8 x 40.0 | 3,718 | 0 | 0 | outward ✔ | 1 | 0.0% |
sponge_caddy_large | 154.8 x 96.8 x 46.0 | 3,818 | 0 | 0 | outward ✔ | 1 | 0.0% |
remote_holder_60mm_screw | 64.8 x 36.4 x 125.0 | 4,264 | 0 | 0 | outward ✔ | 1 | 0.1% |
remote_holder_60mm_strip | 64.8 x 36.4 x 125.0 | 3,628 | 0 | 0 | outward ✔ | 1 | 0.2% |
remote_holder_100mm_screw | 104.8 x 36.4 x 125.0 | 4,288 | 0 | 0 | outward ✔ | 1 | 0.1% |
remote_holder_100mm_strip | 104.8 x 36.4 x 125.0 | 3,652 | 0 | 0 | outward ✔ | 1 | 0.1% |
desk_organiser_shallow | 120.0 x 90.0 x 30.0 | 4,686 | 0 | 0 | outward ✔ | 1 | 0.1% |
desk_organiser_medium | 120.0 x 90.0 x 55.0 | 4,686 | 0 | 0 | outward ✔ | 1 | 0.1% |
desk_organiser_deep | 120.0 x 90.0 x 85.0 | 4,686 | 0 | 0 | outward ✔ | 1 | 0.0% |
tube_roller_60mm_housing | 76.0 x 36.0 x 38.0 | 720 | 0 | 0 | outward ✔ | 1 | 3.3% |
tube_roller_60mm_key | 31.4 x 31.4 x 87.0 | 1,656 | 0 | 0 | outward ✔ | 1 | 0.7% |
tube_roller_80mm_housing | 96.0 x 36.0 x 38.0 | 720 | 0 | 0 | outward ✔ | 1 | 3.4% |
tube_roller_80mm_key | 31.4 x 31.4 x 107.0 | 1,656 | 0 | 0 | outward ✔ | 1 | 0.6% |
cable_comb_4mm | 62.0 x 10.9 x 12.0 | 6,696 | 0 | 0 | outward ✔ | 1 | 0.0% |
cable_comb_6mm | 72.0 x 12.9 x 12.0 | 6,864 | 0 | 0 | outward ✔ | 1 | 0.0% |
cable_comb_8mm | 82.0 x 14.9 x 12.0 | 6,992 | 0 | 0 | outward ✔ | 1 | 0.0% |
thumb_page_holder_S | 68.0 x 27.0 x 4.5 | 7,972 | 0 | 0 | outward ✔ | 1 | 0.0% |
thumb_page_holder_M | 76.3 x 30.0 x 4.5 | 7,972 | 0 | 0 | outward ✔ | 1 | 0.0% |
thumb_page_holder_L | 84.7 x 33.0 x 4.5 | 7,970 | 0 | 0 | outward ✔ | 1 | 0.0% |
- Every part: no self-intersections, no degenerate faces, flat first layer, walls 1.2 mm or more (ray-cast; thinner readings only on chamfered or rounded edges, under 0.1 % of any surface).
- Overhang above is short bridging only (largest span 4 mm). No supports needed.
Fit and function tests
| Test | Result |
|---|---|
| Sponge caddies with 95 x 65 x 30 and 140 x 85 x 35 mm sponges | no overlap ✔ |
| Remote holders (screw and no-drill) with 54 mm and 94 mm wide remotes | 3 mm each side ✔ |
| Organisers stacked in every combination | side clearance 0.30 mm, seats on a 45° chamfer ✔ |
| Tube roller keys in the 60 and 80 mm housings | 0.29 mm clearance at the bearings ✔ |
| 4, 6 and 8 mm cables seated in the comb channels | about 0.2 mm all round ✔ |
Not yet physically test-printed.
Technical details
- Formats
- STL, 3MF
- Software
- Bambu Studio, PrusaSlicer, OrcaSlicer, Cura
- Provenance
- Procedural
- AI training
- prohibited
- Watertight
- Yes
- Manifold
- Yes
- Print tested by creator
- No
- Printer type
- fdm
- Supports required
- none
- Dimensions (W×D×H mm)
- Sponge caddy 104.8 x 74.8 x 40.0 and 154.8 x 96.8 x 46.0; remote holder 64.8 x 36.4 x 125.0 and 104.8 x 36.4 x 125.0; organisers 120 x 90 x 30/55/85; tube roller housings 76.0 x 36.0 x 38.0 and 96.0 x 36.0 x 38.0; cable combs 62.0 x 10.9 x 12.0 to 82.0 x 14.9 x 12.0; thumb holders 68.0 x 27.0 x 4.5 to 84.7 x 33.0 x 4.5
- Recommended print settings
- PETG (sponge caddy) or PLA, 0.2 mm layers, 3 walls, 15-20% infill, no supports, print as supplied; roller key 4 walls 30% infill
More like this
Files validated- Interactive 3D preview

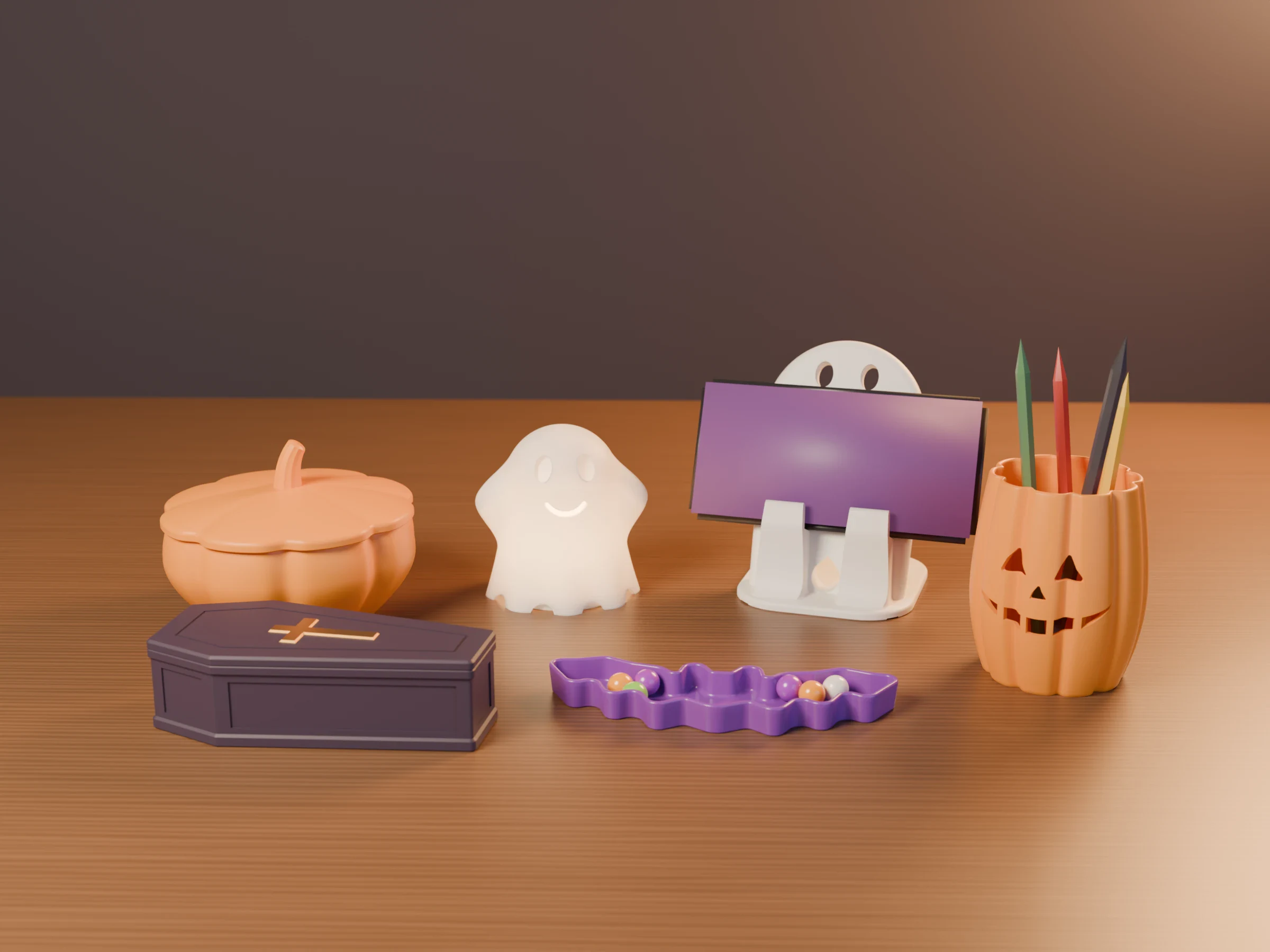

Halloween Desk Decor Pack: Ghost Lantern, Coffin Box, Pumpkin Bowl & More (6 Pieces)
STL · 3MF
150 creditsNo reviews yet
Files validated- Interactive 3D preview

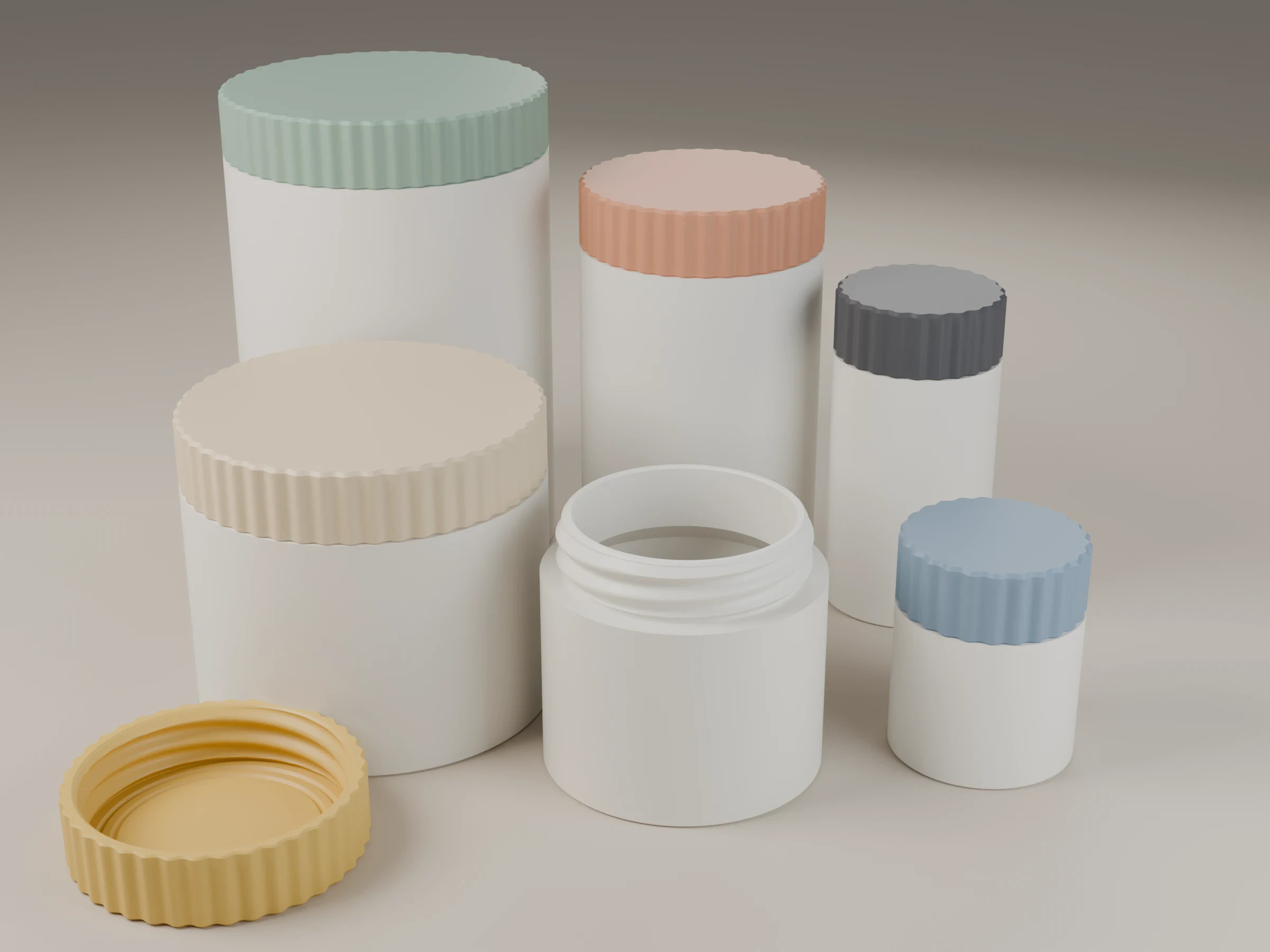

Screw-Top Storage Jar Set: 6 Jars, 9 Lids in 3 Thread Fits & Test Neck
