Description

A matching set of six printable Halloween pieces that are actually useful on a desk: a ghost lantern for an LED tealight, a coffin box with a snap-fit or magnetic lid, a jack-o'-lantern pen holder, a ribbed pumpkin bowl with a stem lid, a bat trinket tray and a ghost phone stand with a charging slot. Every part prints without supports.

What's included (12 parts, STL + 3MF, plus 5 ready plates)

  • Ghost LED lantern (97.0 x 77.5 x 98.0 mm): 1.8 mm glowing shell with a round head, raised arms, scalloped hem and cut-out face, and a base that holds a standard 38 mm LED tealight
  • Coffin storage box (76 x 156 x 45.5 mm with lid): bevelled outline, side panels, two lid versions (snap-fit or 6 x 3 mm magnets) and an optional cross inlay for a second colour

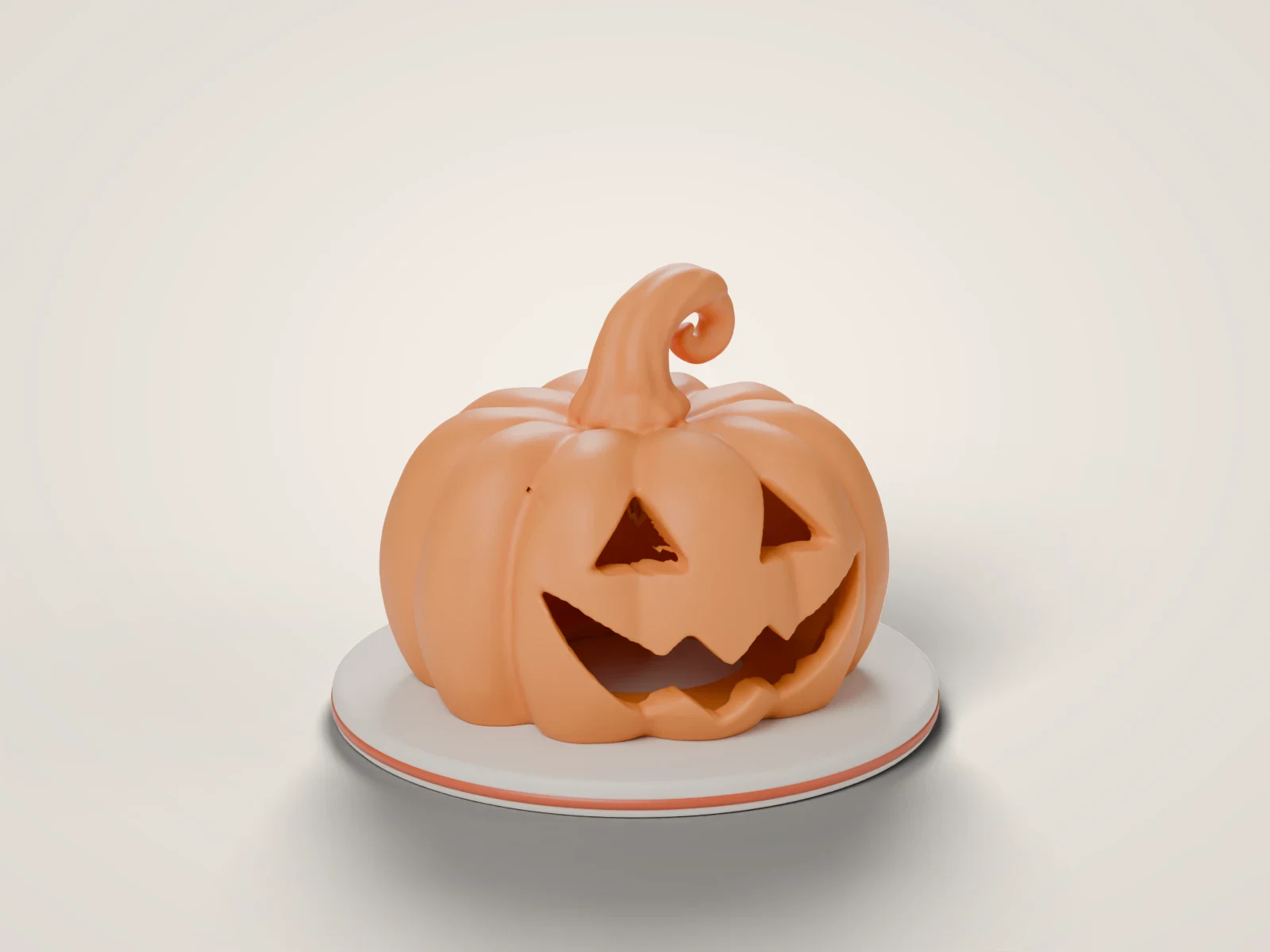

  • Jack-o'-lantern pen holder (84.9 x 87.0 x 103.8 mm): soft ribs, rounded rim, carved face, 6 mm weighted floor
  • Ribbed pumpkin bowl (133.6 x 133.6 x 61.5 mm) with a stem lid that locates on the ribbed rim
  • Bat trinket tray (169.8 x 54.6 x 15.0 mm): rounded rim, coved floor, engraved happy eyes
  • Ghost phone stand (112.7 x 106.0 x 136.9 mm): 67 degree rest for 6.1 to 6.9 inch phones in a case (up to 14 mm thick), cable slot and tunnel for USB-C or Lightning, recesses for rubber feet

Print settings

  • PLA or PETG, 0.4 mm nozzle, 0.2 mm layers, 3 walls, 15 to 25 % infill, no supports
  • Ghost shell: 4 walls (solid 1.8 mm), white or natural PLA for the glow, 5 mm brim
  • Print as supplied: every file is already in its print orientation
  • Every part fits a 180 x 180 mm bed; the plate 3MFs are laid out for 256 x 256 mm

You'll also need

  • One 38 mm LED tealight (battery type, never a real flame)
  • Optional: 8 neodymium magnets 6 x 3 mm (magnetic coffin), 4 rubber bumpers 10 mm (phone stand)

Includes the editable .blend and the Blender Python scripts that generate every part, and an audit file per part.

Blender check (Blender 5.2.1, automated)

FileSize (mm)TrianglesNon-manifoldOpen edgesNormalsShellsOverhang >45°
ghost_lantern_shell97.0 x 77.5 x 98.075,48800outward ✔11.4%
ghost_tealight_base64.6 x 64.6 x 6.05,46800outward ✔10.0%
coffin_box_snap75.8 x 156.0 x 40.07,03600outward ✔10.0%
coffin_lid_snap75.8 x 156.0 x 10.55,96200outward ✔14.0%
coffin_box_magnet75.8 x 156.0 x 40.06,70800outward ✔10.0%
coffin_lid_magnet75.8 x 156.0 x 10.55,69000outward ✔14.2%
coffin_cross_inlay30.0 x 52.0 x 2.023600outward ✔10.0%
jack_o_lantern_pen_holder84.9 x 87.0 x 103.878,96000outward ✔10.3%
ribbed_pumpkin_bowl133.6 x 133.6 x 61.577,82400outward ✔10.0%
ribbed_pumpkin_bowl_lid133.4 x 133.4 x 40.929,26800outward ✔13.2%
bat_trinket_tray169.8 x 54.6 x 15.064,79600outward ✔10.0%
ghost_phone_stand112.7 x 106.0 x 136.920,09800outward ✔11.2%
  • Every part: no self-intersections, no degenerate faces, flat first layer, walls 1.2 mm or more (ray-cast; the only thinner readings, under 0.1 % of any part's surface, are knife edges where openings are cut through curved walls and the edges of the bumper recesses).
  • Overhang above is short bridging only (largest span 11 mm): face and hem openings, the cross recess and groove ceilings on the bed side of the lids, the bumper recesses under the stand. No supports needed.

Fit and function tests

TestResult
Ghost shell over the tealight base0.9 mm gap, no overlap ✔
Coffin snap lid in the boxside clearance 0.28 mm, beads seat in the groove ✔
Coffin magnet lid in the boxside clearance 0.30 mm, lip clears the magnet columns ✔
Cross inlay in the lid recess0.15 mm per side by design, no overlap ✔
Pumpkin lid on the ribbed rim0.31 mm on the flanks, seats on the rim ✔
Phone stand: 75.6 x 11.8 x 151.6, 81.6 x 12.3 x 167 and 82 x 14 x 166 mm devicesno overlap ✔
Phone stand: 12.5 x 7 x 30 mm USB-C / Lightning plug bodyclears the slot ✔
Phone stand: centre of gravity41 to 44 mm inside the base ✔

Not yet physically test-printed.

Technical details

Formats
STL, 3MF
Software
Bambu Studio, PrusaSlicer, OrcaSlicer, Cura
Provenance
Procedural
AI training
prohibited
Watertight
Yes
Manifold
Yes
Print tested by creator
No
Printer type
fdm
Supports required
none
Dimensions (W×D×H mm)
Ghost lantern 97.0 x 77.5 x 98.0; coffin box 75.8 x 156.0 x 45.5 with lid; pen holder 84.9 x 87.0 x 103.8; pumpkin bowl 133.6 x 133.6 x 61.5; bat tray 169.8 x 54.6 x 15.0; phone stand 112.7 x 106.0 x 136.9
Recommended print settings
PLA/PETG, 0.2 mm layers, 3 walls, 15-25% infill, no supports, print as supplied; ghost shell 4 walls with a 5 mm brim
